To determine the internal resistance of given primary cell using potentiometer. Determination of internal resistance of potentiometer. (a) describe briefly, with the help of circuit diagram, the method of measuring the internal resistance of a cell. Draw the circuit diagram of a potentiometer which can be used to determine the internal resistance (e) of a given cell of emf. (ii) how does the position of balance point (j) change when the resistance r1 is decreased?

When current is drawn from a cell, there is a movement (flow) of ions in the electrolyte between the electrodes of the cell. Important Questions For Cbse Class 12 Physics Potentiometer Cell And Their Combinations
Important Questions For Cbse Class 12 Physics Potentiometer Cell And Their Combinations from farm6.staticflickr.com

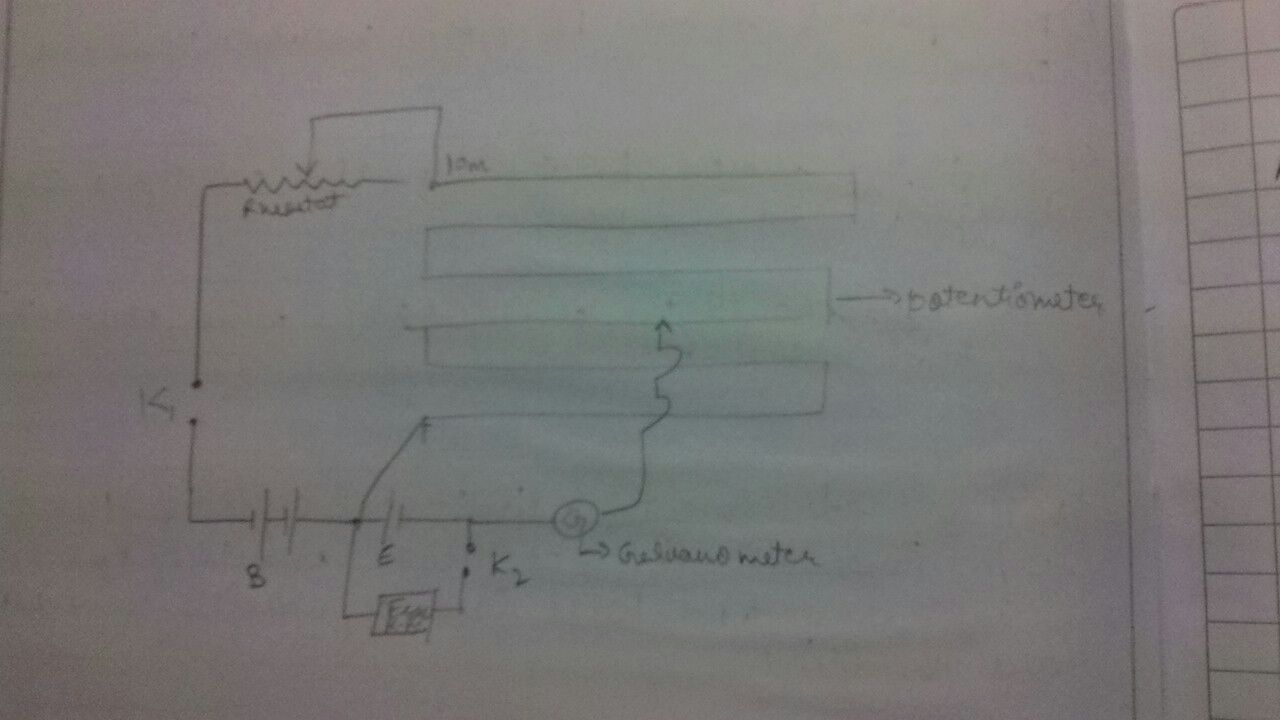

With key k 2 kept open, move the jockey along ab till it balances the emf ε of the cell. To determine the internal resistance of given primary cell using potentiometer. Asked aug 24 in physics by kanchan01 ( 10.3k points) current electricity Describe briefly, with the help of a circuit diagram, how a potentiometer is used to determine the internal resistance of a given cell. E = i (r + r). The key k 1 is closed and k 2 is open. The connections should be according to the diagram shown above. Where l1 and l2 are balancing lengths without shunt or with the shunt.

internal resistance of a cell using potentiometer experiment.

Give reasons, whether the circuit will work, if driver cell of emf 5v is replaced with a cell 2v. Determination of internal resistance of potentiometer. (ii) how does the position of balance point (j) change when the resistance r1 is decreased? Now the given cell c is connected such that its positive terminal is connected to a and negative terminal to jockey j through a. a cell is characterised by its emf ε. a potentiometer wire of length 4m, resistance 8 ω is connected in series with a 2 volt battery of internal resistance 2 ω.a primary cell is balanced over a length of 2.50 m. Describe briefly, with the help of a circuit diagram, how a potentiometer is used to determine the internal resistance of a given cell. Draw the circuit diagram of a potentiometer which can be used to determine the internal resistance (e) of a given cell of emf. Close the key k 1.a constant current flows through the potentiometer wire. Now the given cell c is connected such that its positive terminal is connected to a and negative terminal is jockey k through a. a cell of emf e is connected across the resistance box through key k1. L1).so, v = know, using the relation, therefore, we have R is the shunt resistance in parallel with the given cell.

Asked aug 24 in physics by kanchan01 ( 11.3k points) current electricity If k is the potential gradient, then emf of the cell will be : This cell is now replaced by another cell of unknown emf. Now we can modify the equation for getting the. Asked aug 24 in physics by kanchan01 ( 10.9k points) current electricity

Now the given cell c is connected such that its positive terminal is connected to a and negative terminal to jockey j through a. Determine The Internal Resistance Of Cell Using Potentiometer Application Management Software Application Software And System Software Bentley Systems Bentley Application Software Packages एप ल क शन स फ टव यर प क ज
Determine The Internal Resistance Of Cell Using Potentiometer Application Management Software Application Software And System Software Bentley Systems Bentley Application Software Packages एप ल क शन स फ टव यर प क ज from 5.imimg.com
a battery b 1 a rheostat (rh) and a key k is connected across the ends a and b of the potentiometer wire such that positive terminal of battery is connected to point a. To measure the internal resistance of a given primary cell using potentiometer. Of the cell balances over a length of 2m. Now we can modify the equation for getting the. Give reasons, whether the circuit will work, if driver cell of emf 5v is replaced with a cell 2v. Determine the internal resistance of a primary cell using a potentiometer. It consists of a long wire of uniform cross sectional area and of 10 m in length. A resistance box r is connected across the cell e 1 through the key k 2.

The circuit now consists of cell e, cell e 1, and the potentiometer wire.

I = current in amperes (amp) r = load resistance of the load in the circuit in. (2) here, r = internal resistance of the cell in. (i) internal resistance of primary cell: Now the given cell c is connected such that its positive terminal is connected to a and negative terminal is jockey k through a. When key k1 is opened galvanometer shows deflection at the balancing length l1. When current is drawn from a cell, there is a movement (flow) of ions in the electrolyte between the electrodes of the cell. a cell is characterised by its emf ε. The internal resistance of the cell is given by. (a) describe briefly, with the help of circuit diagram, the method of measuring the internal resistance of a cell. So, e = k if both keys are closed, then balancing point is obtained at length l2 (l2 < potentiometer is a device used to measure the internal resistance of a cell, to compare the e.m.f. Then, e = k l 1 and v = k l 2 ; With key k 2 kept open, move the jockey along ab till it balances the emf ε of the cell.

The internal resistance of the cell is given by. In a potentiometer arrangement, a cell of emf 1.20 volt gives a balance point at 30 cm length of the wire. E = electromotive force in volts. The internal resistance of the cell, r = r v e − v using a potentiometer, we can adjust the rheostat to obtain the balancing lengths l 1 and l 2 of the potentiometer for open and closed circuits respectively. (a) describe briefly, with the help of circuit diagram, the method of measuring the internal resistance of a cell.

Determine the internal resistance of a primary cell using a potentiometer. Https Www Topperlearning Com Answer Draw A Circuit Diagram To Co Yvnf0sjtt
Https Www Topperlearning Com Answer Draw A Circuit Diagram To Co Yvnf0sjtt from
(i) internal resistance of primary cell: a cell is characterised by its emf ε. Let l 1 be the balancing length of the wire. The fall of potential along any length of the wire is directly proportional to that length. a battery b 1 a rhecostat (rh) and a key k is connected across the ends a and b of the potentiometer wire such that positive terminal of battery is connected to point a.this completes the primary circuit. L1).so, v = know, using the relation, therefore, we have Then, e = k l 1 and v = k l 2 ; R is the shunt resistance in parallel with the given cell.

The fall of potential along any length of the wire is directly proportional to that length.

Draw the circuit diagram of a potentiometer which can be used to determine the internal resistance (e) of a given cell of emf. Draw the circuit diagram of a potentiometer which can be used to determine the internal resistance (e) of a given cell of emf. The key k 1 is closed and k 2 is open. In a potentiometer arrangement, a cell of emf 1.20 volt gives a balance point at 30 cm length of the wire. L1).so, v = know, using the relation, therefore, we have a cell of emf e is connected across the resistance box through key k1. It consists of a long wire of uniform cross sectional area and of 10 m in length. potentiometer is a device used to measure the internal resistance of a cell, to compare the e.m.f. internal resistance of a cell using potentiometer experiment. So, e = k if both keys are closed, then balancing point is obtained at length l2 (l2 < (a) describe briefly, with the help of circuit diagram, the method of measuring the internal resistance of a cell. A resistance box r is connected across the cell e 1 through the key k 2. Determination of internal resistance of potentiometer.

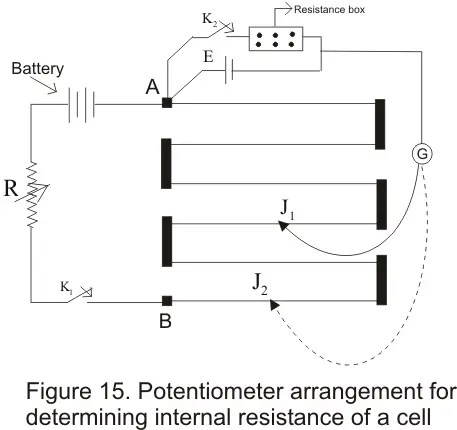

Circuit Diagram Of Internal Resistance Of A Cell Using Potentiometer : 1 C Manhattan Press H K Ltd Potentiometer Comparing Resistances Measuring The E M F Of A Cell Measuring The Internal Resistance Of A Cell Ppt Download. a battery b 1 a rhecostat (rh) and a key k is connected across the ends a and b of the potentiometer wire such that positive terminal of battery is connected to point a.this completes the primary circuit. a cell of emf e 1 whose internal resistance r is to be determined is connected to the potentiometer wire through a galvanometer g and the jockey j. Of two cells and potential difference across a resistor. And, determination of potential difference using potentiometer, the formula is: Figure shows the circuit diagram of a potentiometer for determining the emf e of a cell of negligible internal resistance.
